(1) tool:
SecureCRT.v7.0.2.418(x64)
Tera Term Pro 2.3

The terminal program must support “xmodem” file transfer protocol.

(2) tool setting:
注意TX RX 2邊互調連接。

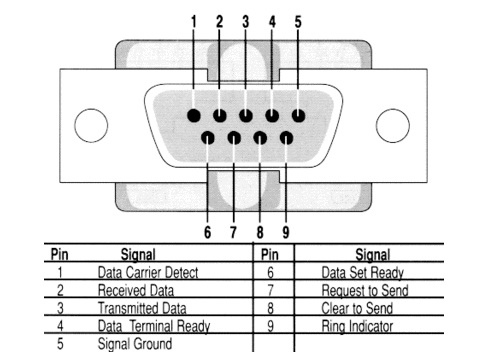

pin 2 in the PC serial port goes to pin 3 in the DAC, pin 3 to pin 2 and pin 5 to pin 5.

Baud rate: 115,200 (This is pretty fast. Use a good, short cable)
Data bits: 8
Stop bits: 1
Parity: none
Flow control: none

(3) tool open
You might see an “I0” instead of an “I3”. That is OK.

Type “+++” and wait for the DAC to respond (~1 sec).
You must enter “+++”, otherwise there will be no response.
Now you can get to the uManager prompt.

dam1021 uManager Rev 0.80  20150121  FPGA Rev 0.9  Press ? for help.

# ?
uManager Commands

?/Help               show this help
set par = value      set paramter to value, set alone to show current
  conspeed = 9600 | 19200 | 38400 | 57600 | 115200
  volume = fixed -80 - +10, -99 enable volume potmeter
  filter = linear | mixed | minimum | soft
  mode = normal | invert | bal-left | bal-right
download             download uManager, fpga or filters
update               update uManager firmware
filters [all]        show selected or all filters
df [adr]             dump flash content
exit                 exit uManager

(4) firmware change
=========================
1021fpga_105.skr
1021_uc_106.skr
1021filt_105.skr
=========================

Now type “download”,
This means that you have 30 seconds to begin sending your file.

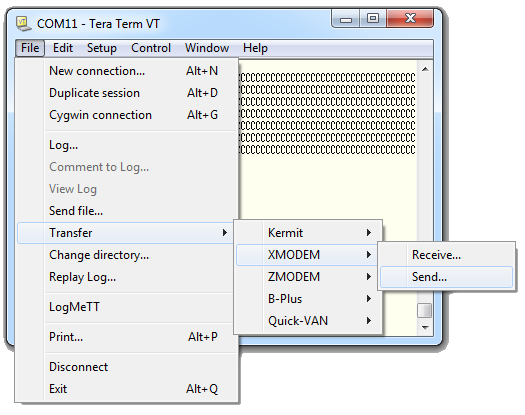

In the “File” pull down menu select “Transfer” -> “Xmodem” -> “Send”

1. Tera Term

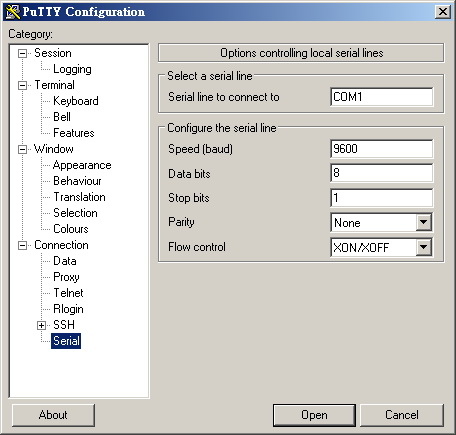

2. PuTTY

# download
Start sending file using XMODEM/CRC protocol.
CCCCCCCCCCCCC
Starting xmodem transfer.  Press Ctrl+C to cancel.
Starting xmodem transfer.  Press Ctrl+C to cancel.
  100%     456 KB    6 KB/s 00:01:09       0 Errors

# download
Start sending file using XMODEM/CRC protocol.
CCCCCC
Starting xmodem transfer.  Press Ctrl+C to cancel.
  100%      22 KB    7 KB/s 00:00:03       0 Errors

# download
Start sending file using XMODEM/CRC protocol.
CCCCCCCC
Starting xmodem transfer.  Press Ctrl+C to cancel.
  100%     112 KB    6 KB/s 00:00:17       0 Errors

# update
uManager Firmware Update, are you sure ?   Updated, resetting.

dam1021 uManager Rev 1.06 20160304  FPGA Rev 1.05  Press ? for help.

(4) filter change
=========================
Non-Oversampling_0.99
1021filt.skr
=========================

使用non-oversampling的濾波器組，已經組譯為 1021filt.skr，可以直接 update 到 0.99 版韌體，
再選擇 6 號濾波器 (即原本的 Minimum filter）即可使用。

# download

Start sending file using XMODEM/CRC protocol.
CCCCCCCCCCCCCCCCC
Starting xmodem transfer.  Press Ctrl+C to cancel.
  100%      46 KB    7 KB/s 00:00:06       0 Errors

# filters all

04 Linear Phase FIR1, 44.1 Ksps, 0-19.7 Khz - 1 db, 22.3 Khz -150db
04 Linear Phase FIR1, 48 Ksps, 0-21 Khz - 1 db, 24.3 Khz -150db
05 Mixed Phase FIR1, 44.1 Ksps, 0-19.6 Khz - 1 db, 22.6 Khz -150db
05 Mixed Phase FIR1, 48 Ksps, 0-20.5 Khz - 1 db, 24.6 Khz -150db
06 New NOS Input FIR, 44.1 Khz Samplerate, bypass
06 New NOS Input FIR, 48 Khz Samplerate, Bypass
06 New NOS Input FIR, 88.2 Khz Samplerate, Bypass
06 New NOS  Input FIR, 96 Khz Samplerate, Bypass
06 New NOS Input FIR, 176.4 Khz Samplerate, Bypass
06 New NOS Input FIR, 192 Khz Samplerate, Bypass
06 New NOS Input FIR, 352.8 Khz Samplerate, Bypass
06 New NOS Input FIR, 384 Khz Samplerate, Bypass
07 Soft Minimum FIR1, 44.1 Ksps, 0-20.2 Khz - 1 db, 25.2 Khz -50db
07 Soft Minimum FIR1, 48 Ksps, 0-22 Khz - 1 db, 29 Khz -50db
04 Linear Phase FIR1, 88.2 Ksps, 0-35 Khz - 1 db, 45 Khz -150db
04 Linear Phase FIR1, 96 Ksps, 0-38 Khz - 1 db, 49 Khz -150db
05 Mixed Phase FIR1, 88.2 Ksps, 0-34 Khz - 1 db, 45 Khz -150db
05 Mixed Phase FIR1, 96 Ksps, 0-37 Khz - 1 db, 49 Khz -150db
04 Linear Phase FIR1, 176.4 Ksps, 0-66 Khz -1 db, 90 Khz -150db
04 Linear Phase FIR1, 192 Ksps, 0-72 Khz -1 db, 98 Khz -150db
05 Mixed Phase FIR1, 176.4 Ksps, 0-63 Khz -1 db, 90 Khz -150db
05 Mixed Phase FIR1, 192 Ksps, 0-68 Khz -1 db, 98 Khz -150db
04 Bypass FIR1, 352.8 Ksps
04 Bypass FIR1, 384 Ksps
08 Linear Phase FIR2, 352.8 Ksps, 0-83 Khz -1 db, 209 Khz -100 db
08 Linear Phase FIR2, 384 Ksps, 0-76 Khz -1 db, 192 Khz -100 db
29 DC Blocking IIR, 352.8 Ksps, 2 Hz HP 1st order
29 DC Blocking IIR, 384 Ksps, 2 Hz HP 1st order
30 Deemphasis IIR, 352.8 Ksps, 50/15 uS
30 Deemphasis IIR, 384 Ksps, 50/15 uS

# set filter = minimum
F6

==========================================
Filters select

you need to use 0.99 filters for 0.99 firmware, otherwise the dac won't receive data, and the led will just blink.

Type +++ at the extraputty screen,
Type download, and download the partypak skr file

(1) play mode
To select the filters, in play mode you type: F4 or F5 or F6 or F7 (not the function keys!) for selecting one of the 4 filters

(2) uManager
When you go into the uManager (+++) you type:
set filters = Linear
or
set filters = Mixed
or
set filters = Minimum
or
set filters = Soft

Linear, Mixed, Minimum, Soft corresponds to F4, F5, F6, F7

Linear selects bank 1of the filters
Mixed selects bank 2
Minimum selects bank 3
Soft selects bank 4
